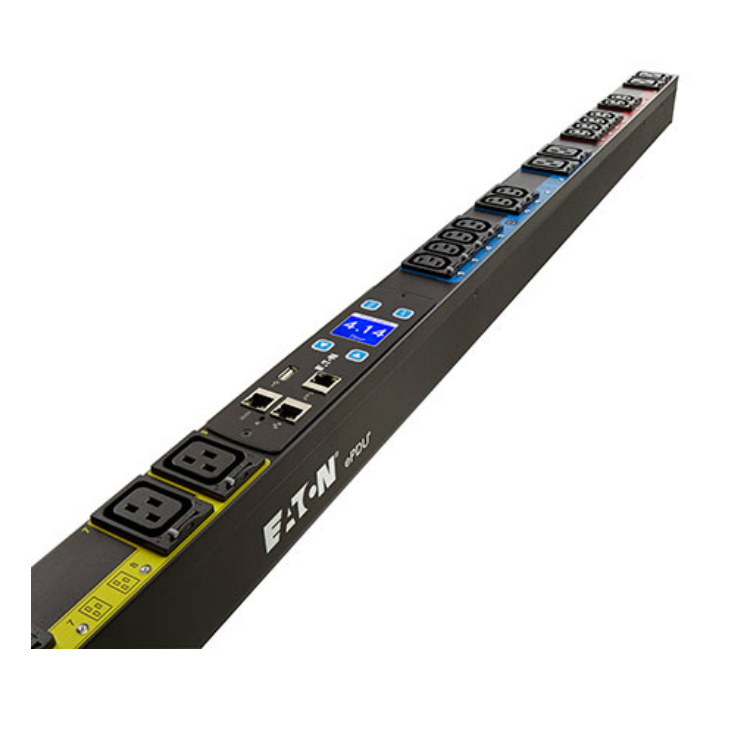

伊頓 G3 管理型 ePDU
G3 管理型 ePDU 可對包括由多臺 ePDU 供電在內的設備進行完全的關燈控制和計量。具有 IEC 1 類（? ? ?±1%）計費級精度、使用 LCD 像素顯示屏顯示 V、W、A 和 kWh 的先進熱插拔計量表，并能以菊花鏈連接 8 個 ePDU，共享網絡連接和 IP 地址。
產品彩頁?
伊頓 管理型EPDU - 技術指標 |
|---|
產品快照 |
|---|
| 頻率 | 50Hz |
|
|
|
| Power Range | 2.3kW - 22kW |
|
|
|
| 額定電壓 | 200 - 400V |
|
|
| 零件號碼 | 型號 | Function | 輸入連接 | 輸出連接 |
| 管理型 G3 |
| Usually in stock |
| EMAB03 | EMAB03 | MA | C14 | (16) C13 |
| EMAB04 | EMAB04 | MA | 309-16A | (20) C13, (4) C19 |
| EMAB05 | EMAB05 | MA | 309-32A | (20) C13, (4) C19 |
| EMAB20 | EMAB20 | MA | 309-16A 3Ph | (21) C13, (3) C19 |
| EMAB22 | EMAB22 | MA | C20 | (20) C13, (4) C19 |
| EMAB33 | EMAB33 | MA | 309-32A 3Ph | (18) C13, (6) C19 |
| EMA115-10 | EMA115-10 | MA | L6-20P, C20 | (21) C13 Outlet grip, (3) C19 Outlet grip |
| EMA106-10 | EMA106-10 | MA | L6-20P, C20 | (7) C13 Outlet grip, (1) C19 Outlet grip |
| 9001-22274XE1 | EMA07G-E | MA | C20 | (8) C13 Outlet grip |
| 9001-22151XE1 | EMA03G-E | MA | C20 | (21) C13 Outlet grip, (3) C19 Outlet grip |
| 9001-22152XE1 | EMA04G-E | MA | 309-332P6W | (20) C13 Outlet grip, (4) |
